PNY Nvidia QUADRO K620 2GB Graphics Card
- Chipset: NVIDIA Quadro K620
- Video Memory: 2GB GDDR3
- Great for Auto CAD, and other Graphics Intensive Applications

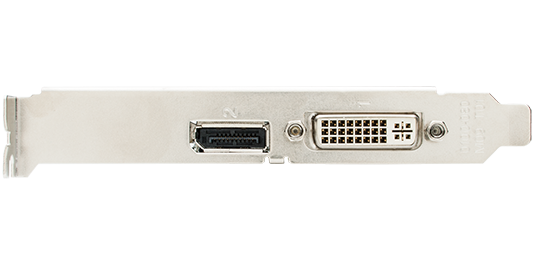

- Connectors: DVI-D Dual Link, DisplayPort
- DisplayPort 1.2 connector
- DisplayPort with Audio
- DVI-I dual-link connector
- VGA support
- HTC Support
- Nvidia Mosaic
PNY provides unsurpassed service and commitment to its professional graphics customers offering: 3 year warranty, pre and post-sales support, dedicated Quadro Field Application engineers and direct tech support hot lines. In addition, PNY delivers a complete solution including the appropriate adapters, cables, brackets, software installation disc and documentation to ensure a quick and successful install
NVIDIA Quadro K620
Impressive Power-Efficient 3D Application Performance
The NVIDIA Quadro K620 offers impressive power-efficient 3D application performance and capability in a flexible single-slot and low-profile form factor makes it compatible with even the most space and power-constrained chassis.
2 GB of DDR3 GPU memory with fast bandwidth enables you to create large, complex 3D models. An all-new display engine drives up to four displays with DisplayPort 1.2 support for ultra-high resolutions up to 3840 x 2160 at 60 Hz with 30-bit color.
- Certified on industry-leading professional applications
- Designed and built for professional workstations
- Backed by a global team of support speciallists

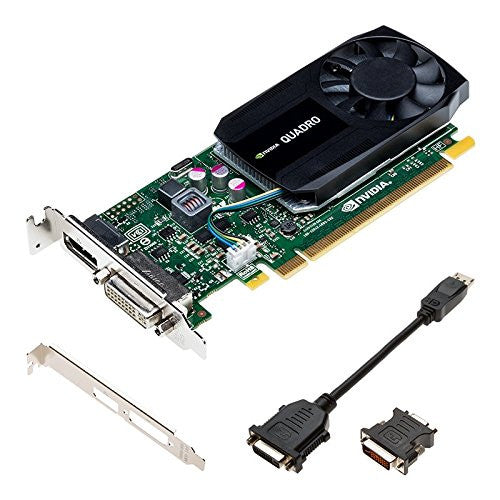

All you need for an easy install in one box

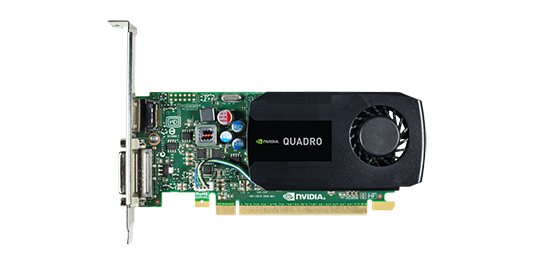

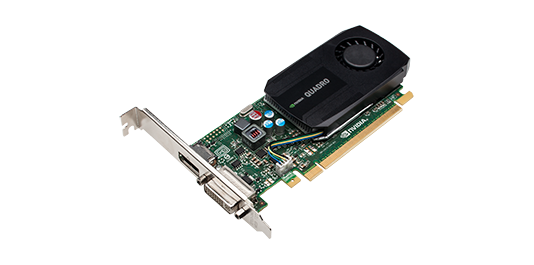

- NVIDIA Quadro K620 professional graphics board
- Attached low profile bracket
- Unattached full height bracket
- DisplayPort to DVI-D SL adapter
- DVI to VGA adapter
- Software installation disc for Windows 8.1, 8, 7, and Vista
- Printed QuickStart Guide
Minimum system requirements
- Microsoft Windows 8.1, 8, 7, Vista, Linux, or Solaris
- Intel Core i5, i7, Xeon, or later
- AMD Phenom or Opteron class, or later
- PCIe x16 expansion slot
- 2GB or more of system memory, 8GB recommended
- 200MB of available disk space for full driver installation
- Blu-ray or DVD-ROM drive
- Internet connection (if preferred for driver installation)
- DisplayPort, DVI, or VGA compatible display(s)
|2 GB DDR3
|Shader Model 5.0, OpenGL 4.4, DirectX 11
|CUDA, DirectCompute, OpenCL
|PCI Express 2.0 x16
|DVI-I DL + DP 1.2
|Maximum DP 1.2 Resolution
|3840 x 2160 (direct connect)
|Number of Displays Supported
|2 (direct connect), 4 DP 1.2 multi-streaming
|Features and Benefits
|NVIDIA CUDA Architecture
|Parallel-computing architecture that tightly integrates advanced visualization and compute features to significantly accelerate professional workflows.
|NVIDIA Scalable Geometry Engine
|Dramatically improves geometry performance across a broad range of CAD, DCC and medical applications, enabling you to work interactively with models and scenes that are an order of magnitude more complex than ever before.
|Quadro Tessellation Engines automatically generate finely detailed geometry for cinematic quality environments and scenes, without sacrificing performance.
|Large Framebuffers with Ultra-Fast Bandwidth
|Large GPU memory with fast bandwidth for display of complex models and scenes, as well as computation of large datasets.
|Silent cooling design enables lower acoustics for an ultra-quiet desktop environment.
|NVIDIA FXAA, TXAA, and FSAA
|Reduces visible aliasing and delivers higher image quality without the performance hit by harnessing the power of the GPU's CUDA cores and new film-style AA techniques.
|The all-new display engine in the NVIDIA GPU drives up to four displays simultaneously, whether they’re directly connected to the board or connected using a single cable using DisplayPort 1.2’s new multi-streaming capabilities. With support for the next-generation DisplayPort 1.2 standard, each DisplayPort connector is also capable of driving ultra-high resolutions like 3840 x2160 at 60 Hz with 30-bit color. The flexible display connectivity of the Quadro family makes it easy to deploy multiple displays across a desktop, build an expansive digital signage wall, or create a sophisticated stereoscopic 3D CAVE environment.
|Deep Color Processing and Display
|Preserve color detail and precision throughout the processing and display pipeline for smooth gradients transitions, even on high dynamic range imagery. Each color component can be processed at up to 32-bit floating point precision and displayed at up to 12-bit precision with supported DisplayPort 1.2 or HDMI 1.4 displays.
|NVIDIA NVIEW Advanced Desktop Software
|This software delivers maximum flexibility for single large display or multi-display options, providing unprecedented end-user control of the desktop experience for increased productivity.
|NVIDIA Enterprise-Management Tools
|Exhaustive tools for maximizing your system uptime by enabling seamless wide-scale deployment. This allows remote query and control of graphics and display settings for systems spread across installations.
