NVME U.2 to NGFF M.2 M-Key PCIe SSD Adapter

QAR 99

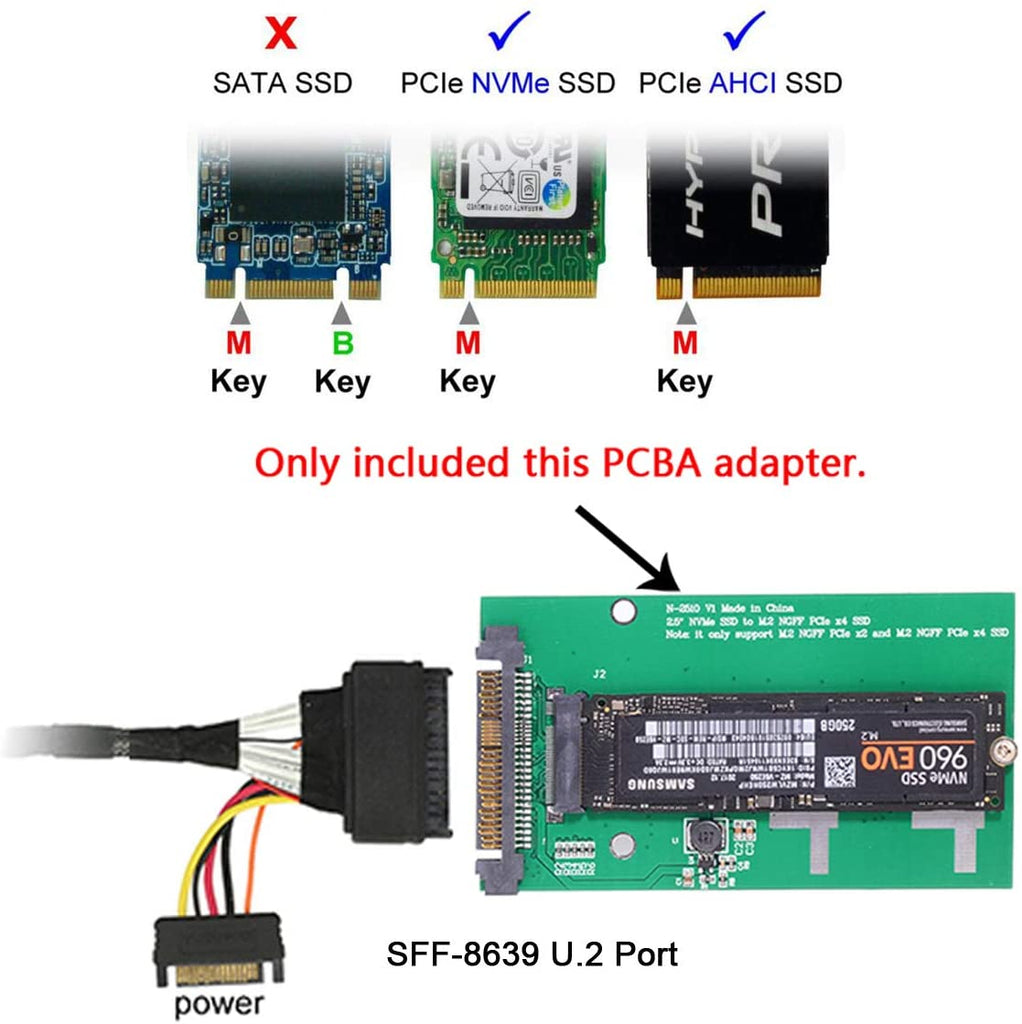

  • The adapter is SFF-8639 U.2 port not SATA/NGFF/M.2 port.

  • Need M-key or NVME SSD, the B-key or B/M-key SSD cannot work.

  • Supports M.2 NGFF modules in format 2280, 2260, 2242 and 2230 with key M

  • Note: for M-key or NVME SSD, please Update to add native driver support in NVM Express in Windows 7 and Windows Server 2008 R2

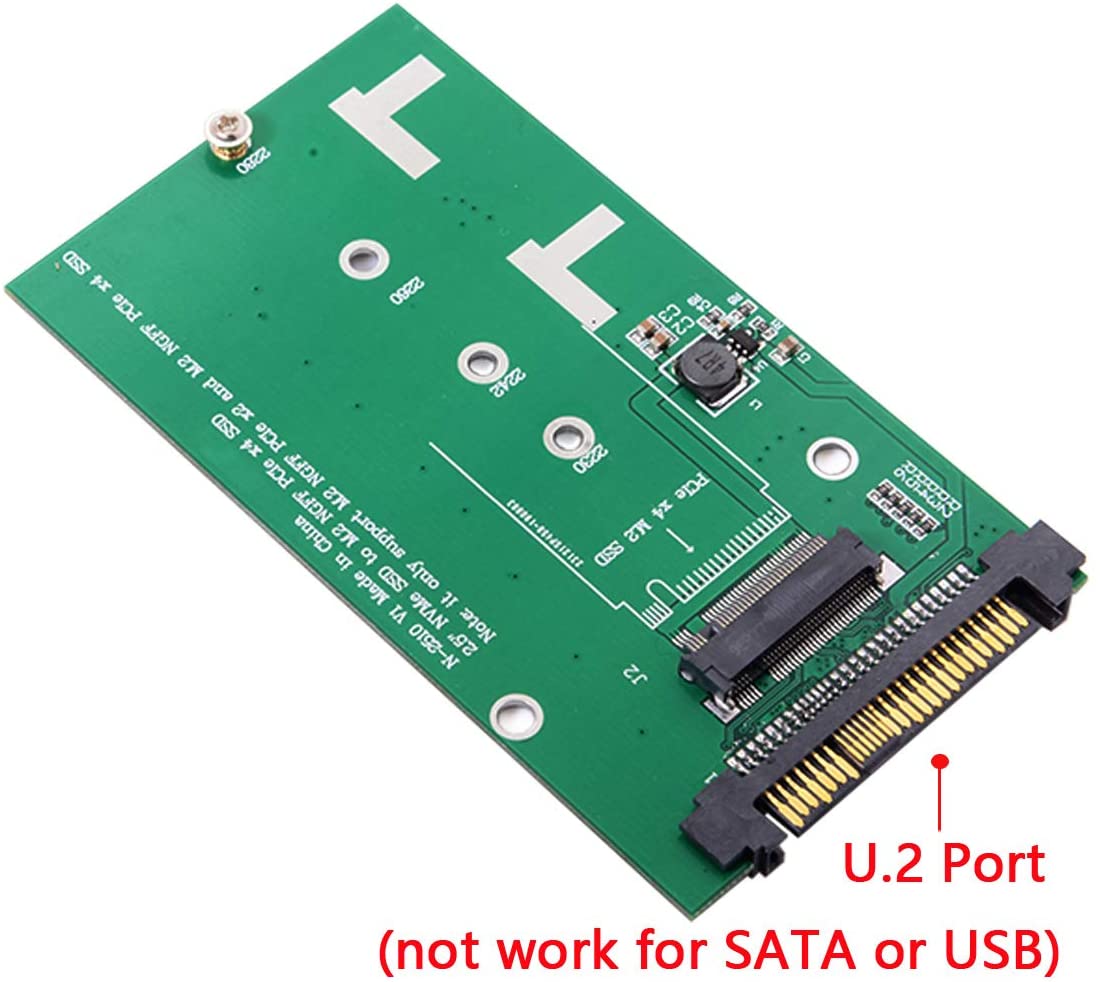

  • It is u2 port, it can not work for SATA hard disk,System requirement: A free U.2 SFF-8639 interface or A free SFF-8643 interface


Product description

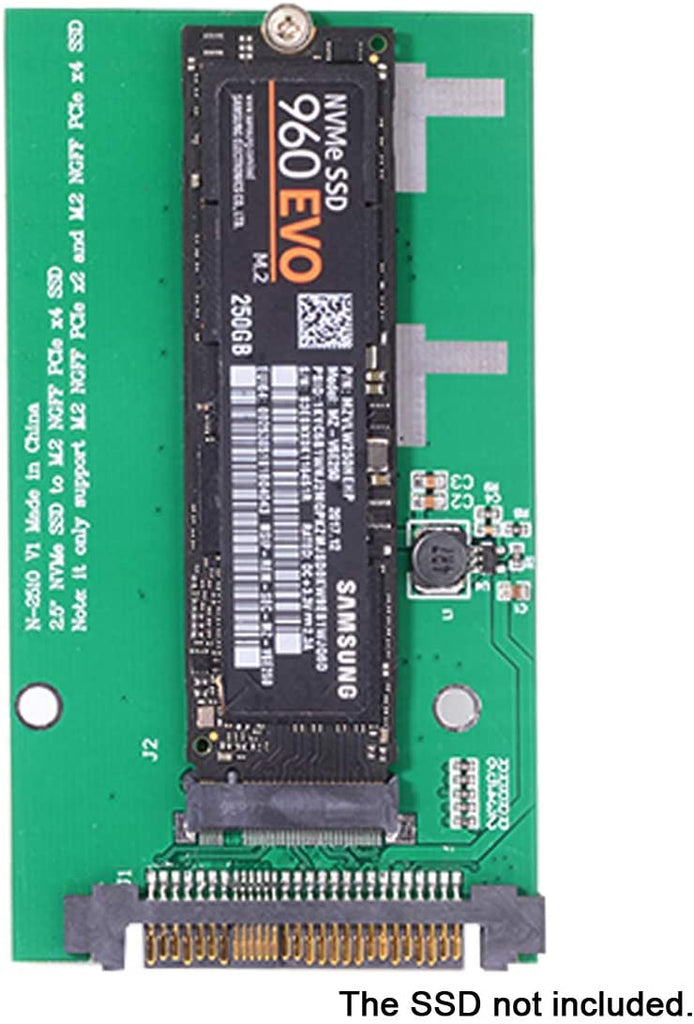

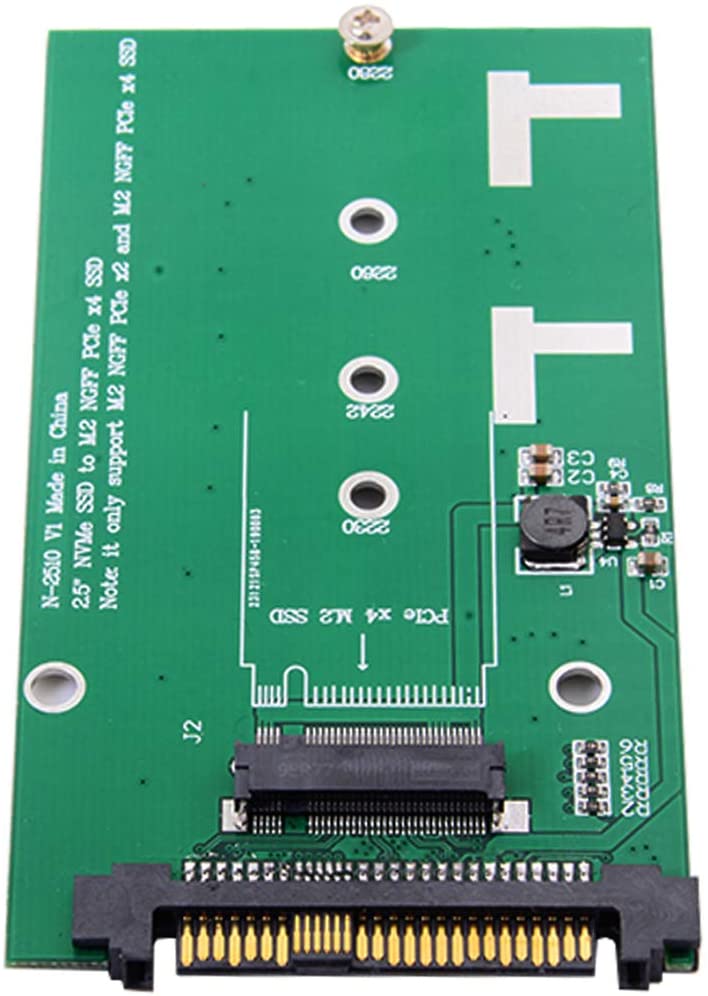

SFF-8639 NVME U.2 to NGFF M.2 M-key PCIe SSD Adapter for Mainboard Replace Intel SSD 750 p3600 p3700
This converter enables the connection of a M.2 NGFF SSD in 2280, 2260, 2242 and 2230 format.
Need M-key or NVME SSD, the B-key or B/M-key SSD cannot work.
The converter can be installed into your system internally through the U.2 68 pin interface.
Connector: U.2 SFF-8639 male & 67 pin M.2 NGFF key M slot
Supports M.2 NGFF modules in format 2280, 2260, 2242 and 2230
 with key M Maximum height of the components on the module: 1.5 mm
application of double-sided assembled modules supported
  System requirements :
Windows 7/7-64/8/8-64/8.1/8.1-64/10/10-64, Linux Kernel 3.16
A free U.2 SFF-8639 interface or A free SFF-8643 interface
  Note: for M-key or NVME SSD, please Update to add native driver support in NVM Express in Windows 7 and Windows Server 2008 R2
https://support.microsoft.com/en-us/kb/2990941
